设计服务内容
IPD Design Services
- 法动科技拥有自主开发的针对集成无源器件（IPD）芯片设计的全波仿真设计平台及优化工具，为客户开发相关工艺的PDK库和参数模型。
- 开发一系列具有市场竞争力的通用型集成无源器件（IPD）芯片产品。
- 开发基于客户需求的定制化集成无源器件（IPD）芯片产品以及相关各种封装形式。
- FaradayDynamics has a self-developed full-wave EM simulation design platform and optimization tools for integrated passive device (IPD) chip design and develops PDK libraries and parametric models for customers.
- Develop a series of general-purpose integrated passive device (IPD) chip products with market competitiveness.
- Develop the customized integrated passive device (IPD) chip products and related packaging to fill in the customer's needs.
IPD产品优势
Advantages of IPD
- 法动科技拥有自主开发的针对集成无源芯片（IPD）芯片设计的全波仿真工具和平台，其设计工具与其它基于主流工艺库的芯片设计平台无缝集成，具有计算容量大、仿真速度快、计算精度高等优势。
- 在自主开发的全波仿真平台上建立基于多种主流工艺库的可参数化无源器件（Parametrized Cell）IP库，可以加速IPD产品开发，缩短开发周期。
- 拥有电磁领域专业设计团队，拥有经过测试验证的高质量IPD产品系列，拥有完善的IPD 设计流程和工艺支持。无论是通用的芯片库产品还是定制开发的芯片，法动科技都可服务客户充分发挥IPD 技术的设计优势。
- 法动科技已开发和设计全种类基于IPD 技术的且性能优于市场同类产品的集成无源芯片，包括各种滤波器、巴伦、耦合器、衰减器、电桥、功分器等，并支持各种封装形式。
- 法动科技开发出一套一次IPD芯片流片设计成功的开发流程，可实现快速的产品定制IPD设计。定制IPD设计基于客户应用的针对性设计，同时可将更多芯片内核集成，实现更高的集成度。
- 法动公司与各个芯片代工公司具有良好的长期合作关系（包括为各主流芯片代工开发基于其工艺库的PDK），可以保证相关芯片的产能交付以及芯片成本控制。
- FaradayDynamics, Ltd has self-developed full-wave EM simulation tools and platforms for integrated passive chip (IPD) chip design. Its design tools are seamlessly integrated with other chip design platforms based on mainstream process libraries, with large computing capacity and simulation capabilities. It has the advantages of high speed and high calculation accuracy.
- Establish a parametrized passive device (Parametrized Cell) IP library based on a variety of mainstream process libraries on the self-developed full-wave EM simulation platform, which can accelerate the development of IPD products and shorten the development cycle.
- Has a professional Engineering team in the electromagnetic field, has a high-quality IPD product series that has been tested and verified, and has a complete IPD design process and process support. Whether it is a general-purpose chip library product or a custom-developed chip, FaradayDynamics can serve customers to give full play to the design advantages of IPD technology.
- FaradayDynamics has developed and designed a full range of integrated passive chips based on IPD technology and with better performance than similar products in the marketing, including various filters, baluns, couplers, attenuators, bridges, power dividers, etc. , and supports various packages.
- FaradayDynamics has developed a successful development process for one-time IPD chip tape-out design, which can realize rapid product customized IPD design. The customized IPD design is based on the targeted design of the customer's applications, and at the same time, more chip cores can be integrated to achieve higher integration.
- FaradayDynamics as a good long-term cooperative relationship with various chip foundries (including developing PDKs based on its process library for mainstream chip foundries), which can ensure the production capacity delivery of related chips and chip cost control.
IPD产品目录
IPD Product Catalog
Part Number |
Part Type |
Wireless Technology |
Pass Band(MHz) |
Insertion Loss (dB Max) |
Return Loss(dB) |
Out of Band Rejection (dB) |
Dimensions (mm) |
Package |
Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|
FDBPF001 |
Band Pass Filter |
5G NR |
3300-4200 |
1.9 |
16 |
30@1710-1850MHz |
2.0x2.0x0.75 |
DFN6 Package |
|
FDBPF002 |
Band Pass Filter |
5G NR |
3300-4200 |
2.5 |
16 |
45@1710-1850MHz |
2.0x2.0x0.75 |
DFN6 Package |
|
FDBPF003 |
Band Pass Filter |
Wifi, Bluetooth |
2400-2500 |
1.5 |
20 |
50@4800-5000MHz |
1.0x0.5x0.75 |
Die |
|
FDBPF004 |
Band Pass Filter |
Wifi, Bluetooth |
2400-2500 |
1.7 |
18 |
25@1710-1910MHz |
1.2x0.8x0.75 |
Die |
|
FDBPF005 |
Band Pass Filter |
Wifi, Bluetooth |
2400-2500 |
1.8 |
18 |
7@2110-2170MHz |
1.3x0.8x0.75 |
Die |
|
FDBPF006 |
Band Pass Filter |
5G NR |
3300-4200 |
1.7 |
16 |
45@1710-1850MHz |
1.0x0.8x0.75 |
Die |
|
FDBPF007 |
Band Pass Filter |
5G NR |
3300-4200 |
1.7 |
16 |
40@1710-1850MHz |
1.0x0.5x0.75 |
Die |
|
FDBPF008 |
Band Pass Filter |
5G NR |
3300-4200 |
1.2 |
20 |
32@1710-1850MHz |
1.0x0.5x0.75 |
Die |
|
FDBPF009 |
Band Pass Filter |
5G NR |
3300-4200 |
1.4 |
16 |
28@1710-1850MHz |
1.0x0.5x0.75 |
Die |
|
FDDIV001 |
Power Divider |
LTE, WLAN / WiMax |
800-1000 |
0.45 |
20 |
N/A |
1.0x0.5x0.75 |
Die |
|
FDBAL001 |
Balun |
5G NR |
2800-6000 |
1.2 |
15 |
N/A |
1.0x0.9x0.75 |
Die |

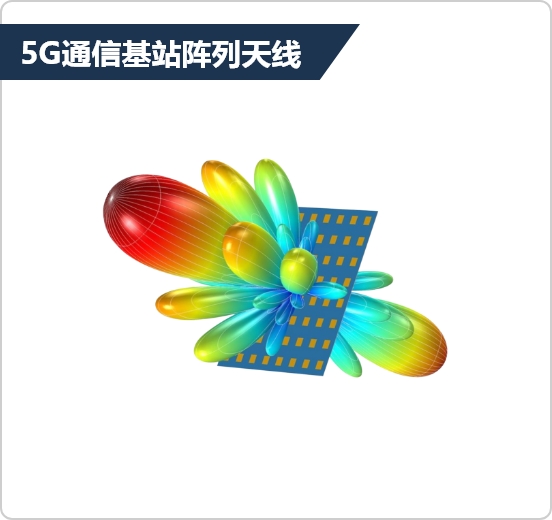

5G基站和无人机天线
